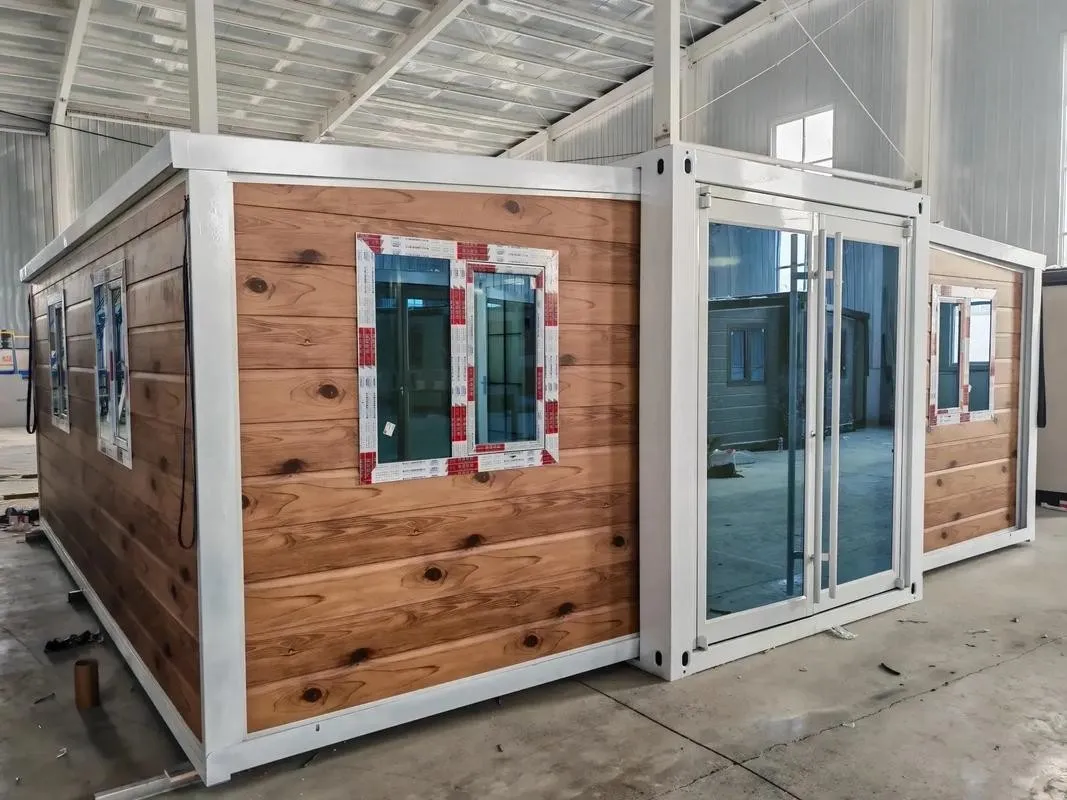

Hanxing Double-Wing Expandable House

The Hanxing Double-Wing Expandable House is a modular integrated building solution based on a light steel structural system. It features a foldable and expandable design built on a standard container unit, with two side wings that can be horizontally extended outward. This innovative structure enables a compact form during transportation and a spacious layout during use.

After expansion, the usable floor area increases by 40% to 100% compared to the folded state. Combining high transport efficiency, rapid deployment, flexible space configuration, strong structural performance, and reusability, it is an ideal solution for temporary offices, accommodation camps, emergency housing, tourism lodges, and commercial pop-up applications.

1. Core Specifications And Parameters

Standard 20ft Unit

• Folded Size: 6058 mm × 2438 mm × 2591 mm

• Expanded Size: 6058 mm × 6000–7200 mm × 2800 mm

• Usable Area:

• Folded: approx. 14.8 sqm

• Expanded: approx. 36–44 sqm

Structural System

• Frame Material: Q235B or Q355 galvanized steel square tubes

• Thickness: 2.0 mm to 3.0 mm

• Galvanizing: Z275 g per square meter

• Structure: Welded + bolted connections

Wall System

• Sandwich Panels: Rock wool or polyurethane

• Thickness: 50 mm 75 mm 100 mm

• Panel Surface: 0.5 mm color-coated steel

Structural Performance

• Wind Resistance: Grade 10 to 12

• Seismic Resistance: Grade 7 to 8

• Roof Load: 0.5 kN per square meter

• Floor Load: 2.0 kN per square meter

Weight And Transport

• Unit Weight: 3.0 to 3.8 tons

• Handling: Forklift crane or flatbed transport

Expansion System

• Standard: Hydraulic synchronized system

• Optional: Manual mechanical system

• Operation Time: 15 to 30 minutes by one operator

Standard Configuration

• Aluminum alloy insulated windows

• Steel entrance door

• LED lighting system

• Electrical distribution box

• Built-in wiring and sockets

• Adjustable base supports

• Integrated sealing system

Optional Features

• Bathroom unit

• Air conditioning system

• Interior decoration

• Smart control system

2. Core Structure And Technical Features

Double-Wing Expansion System

The structure consists of a fixed central module with two side wings connected through high-strength hinges and rail systems. During expansion, the wings extend smoothly outward, forming a seamless connection with no height difference, no leakage, and no thermal bridging.

A hydraulic synchronization system ensures both wings expand evenly with minimal deviation, preventing structural stress or deformation. In case of power failure, manual operation is available.

After expansion, the structure is secured with mechanical locking and sealed with waterproof strips, ensuring excellent air tightness and water resistance.

Hidden pipelines for electrical, water, and HVAC systems are pre-installed within the structure and automatically connect during expansion, improving installation efficiency by more than 60 percent.

Structural Strength And Durability

• Full galvanized steel frame with high rigidity

• Resistant to wind seismic activity and impact

• Service life of 15 to 25 years

• Supports more than 300 reuse cycles

• Anti-corrosion coating with strong UV resistance

• Suitable for extreme climates from -30°C to +50°C

Thermal And Acoustic Performance

• Fire-resistant Class A wall system with fire resistance over 1 hour

• Thermal conductivity ≤ 0.04 W per meter Kelvin

• Sound insulation 35 to 45 dB

• Comfortable indoor environment

3. Space And Functional Advantages

• Expanded space allows full residential layouts including bedroom living room kitchen and bathroom

• Can accommodate 4 to 6 people comfortably

• Flexible internal partition design

• Supports multi-unit horizontal and vertical combinations up to 2 to 3 floors

• Delivered nearly fully finished with utilities pre-installed

• Ready for immediate use after deployment

4. Performance Advantages

Low Transportation Cost

Folded size matches standard container dimensions, reducing logistics costs by over 50 percent.

Fast Deployment

No concrete foundation required. Setup can be completed within 30 minutes per unit.

High Space Efficiency

Interior space doubles after expansion, providing superior comfort compared to traditional container houses.

Structural Reliability

Fully compliant with structural safety requirements including wind, seismic, fire, and waterproof standards.

Eco Friendly

Factory prefabrication eliminates construction waste. Materials are recyclable and reusable.

Strong Adaptability

Suitable for temporary, emergency, and long-term use across different environments.

5. Application Scenarios

Construction And Engineering

• Site offices

• Worker accommodation

• Meeting rooms

• Storage units

Emergency And Disaster Relief

• Temporary housing

• Medical stations

• Command centers

Tourism And Commercial Use

• Modular hotels and lodges

• Pop-up stores and exhibition spaces

• Event facilities

Public And Institutional Use

• Temporary schools and clinics

• Community service stations

• Security offices

International Projects

• Overseas construction camps

• Temporary offices and housing

6. Installation Process

Site Preparation

Ensure level ground with tolerance within 10 mm. Provide additional support for soft soil.

Transportation And Positioning

Transport in folded condition and place using forklift or crane.

Expansion Operation

Connect power supply and activate hydraulic system.
Unlock side wings and expand simultaneously.
Lock structure after full expansion.

Sealing And Utility Connection

Apply sealant at joints and connect water and electrical systems.

Inspection

Check structural stability waterproof performance and electrical safety before use.

7. Packaging Transportation And Service

Packaging

Waterproof wrapping with steel strapping and corner protection.

Transportation

Suitable for global shipping via containers or flatbed trucks.

Customization

Full customization available including size layout materials and smart systems.

After Sales Service

• 2 year structural warranty

• 1 year components warranty

• Lifetime maintenance

• 24 hour technical support

Certifications

ISO9001 ISO14001 compliant with prefabricated building standards and international certifications.

8. Comparison With Traditional Solutions

Compared to traditional container houses and prefabricated panel houses, the Hanxing Double-Wing Expandable House offers superior space efficiency, faster installation, better structural performance, and higher reusability.

9. Hanxing Brand Advantages

• Over 10 years experience in steel structure and modular housing

• Advanced automated production lines

• Proprietary expandable structure technology

• Strong customization capability

• Exported to more than 50 countries

• Full solution from design to after-sales service
